Viking K2S Control Board Replacement in Wellington: Fixing a Gate That Stopped After Two Feet

What the gate was doing

The gate moved roughly two feet and quit. She couldn’t set the limits, and nothing she tried got it to travel farther or run normally. To a homeowner that looks like a dying gate. To us, “stops at the same spot and won’t take new limits” is a specific clue.

First, back on the track

When we arrived there was a second problem. During her attempts to force the gate, it had come off its track. We released the drive chain first so we could move the gate and re-rail it, then went back to testing the operator. On most sliding gates you can’t move the gate at all while the chain is connected, or not without damaging the motor. Some operators have a manual release. This one doesn’t. Her gate was heavy, so lifting it back onto the track took some work. With the gate re-railed, we powered it up and read the fault.

Reading the EPS2 error

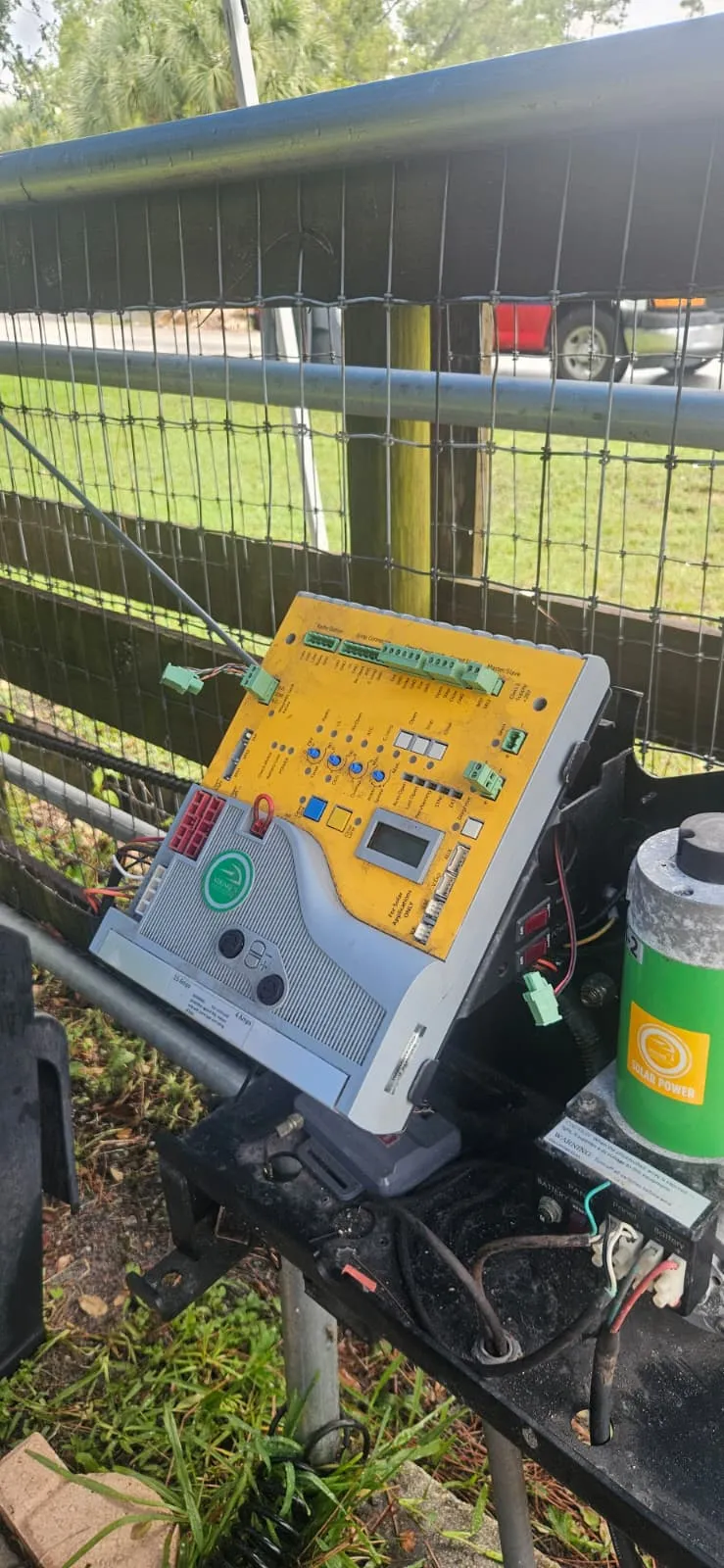

The Viking board was throwing an EPS2 fault. EPS2 is the Electronic Position Sensor, the part that tells the board where the gate is in its travel. When the board can’t trust that position signal, it stops the gate short and refuses to set limits, exactly what she was seeing.

An EPS2 code points at the position sensor, and a sensor is far cheaper than a control board. So the honest first move is to replace the sensor and rule it out before condemning the expensive part. We did exactly that. It didn’t clear the fault.

The fix

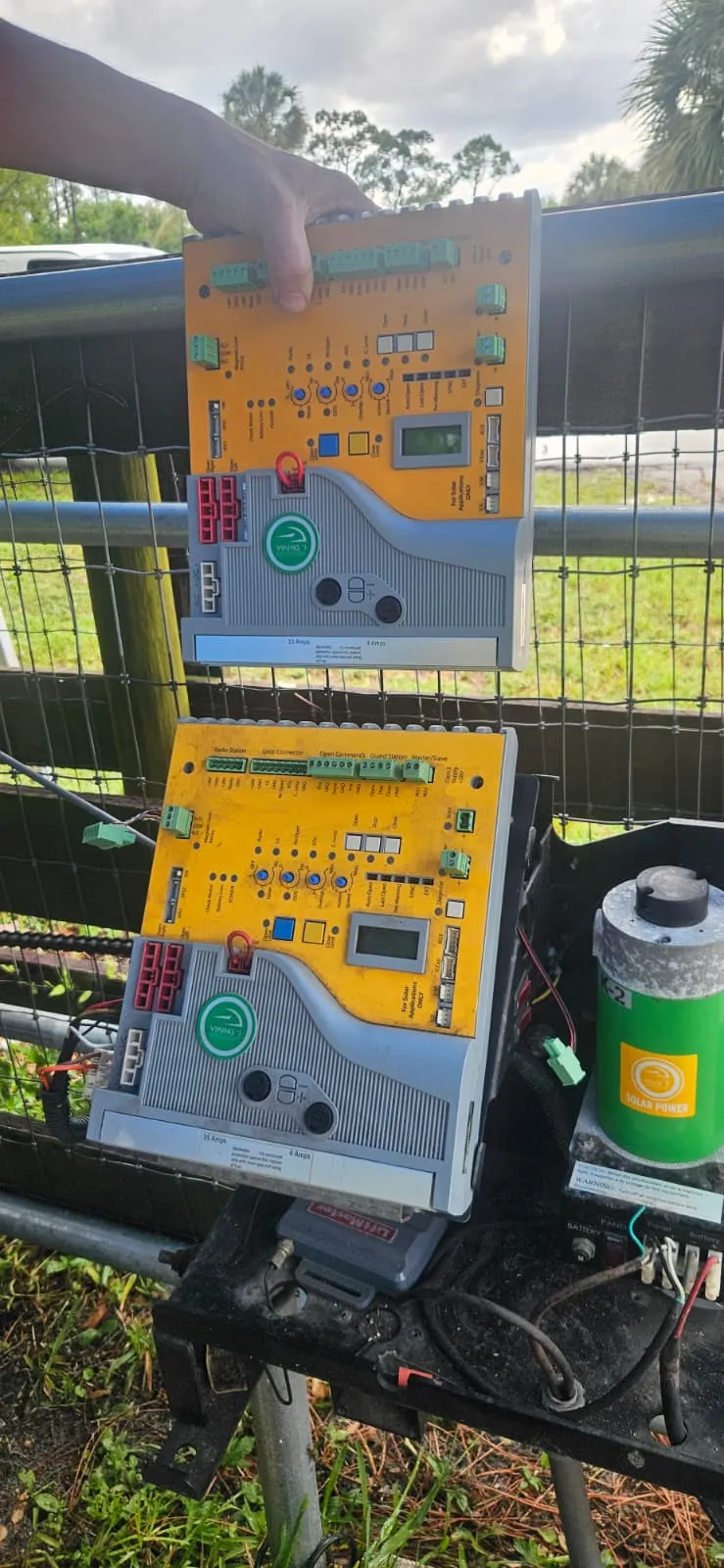

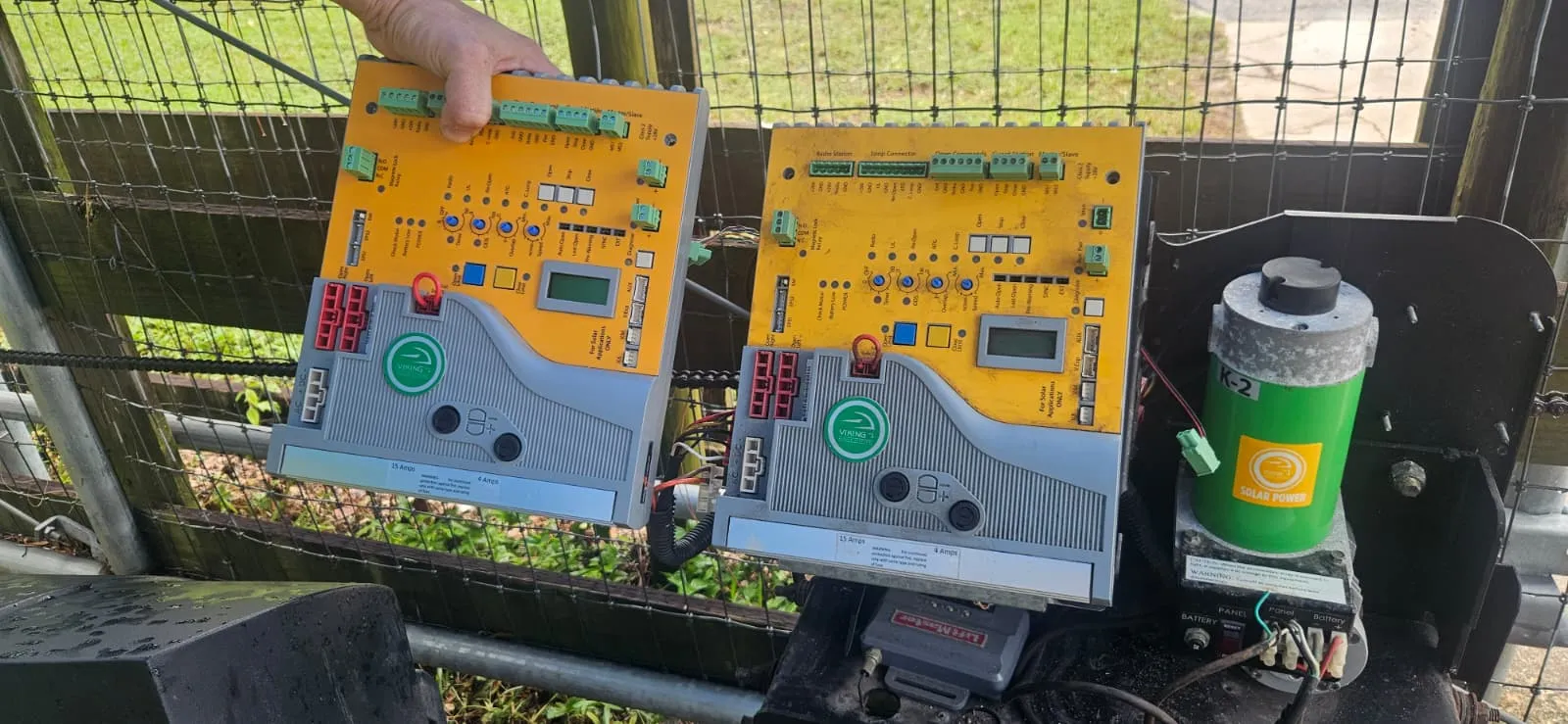

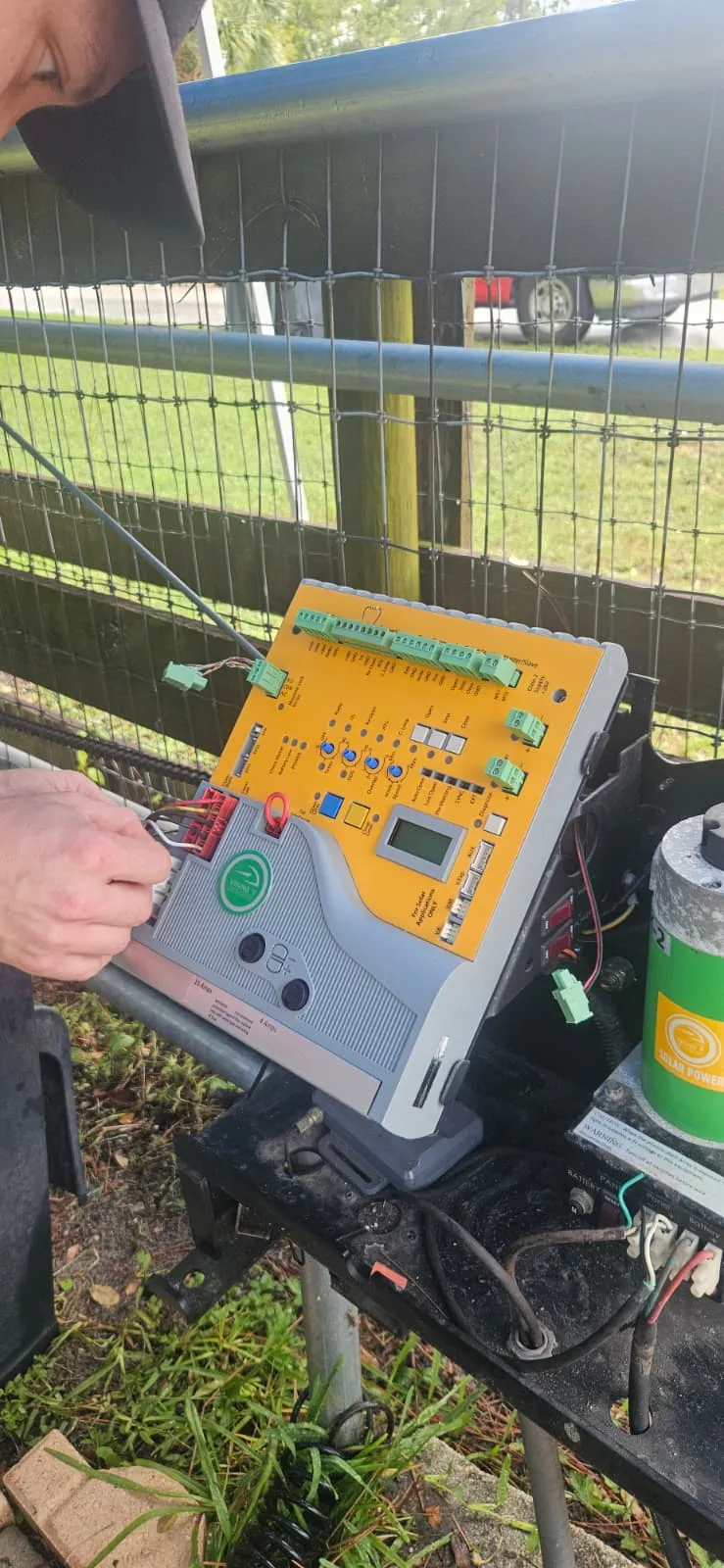

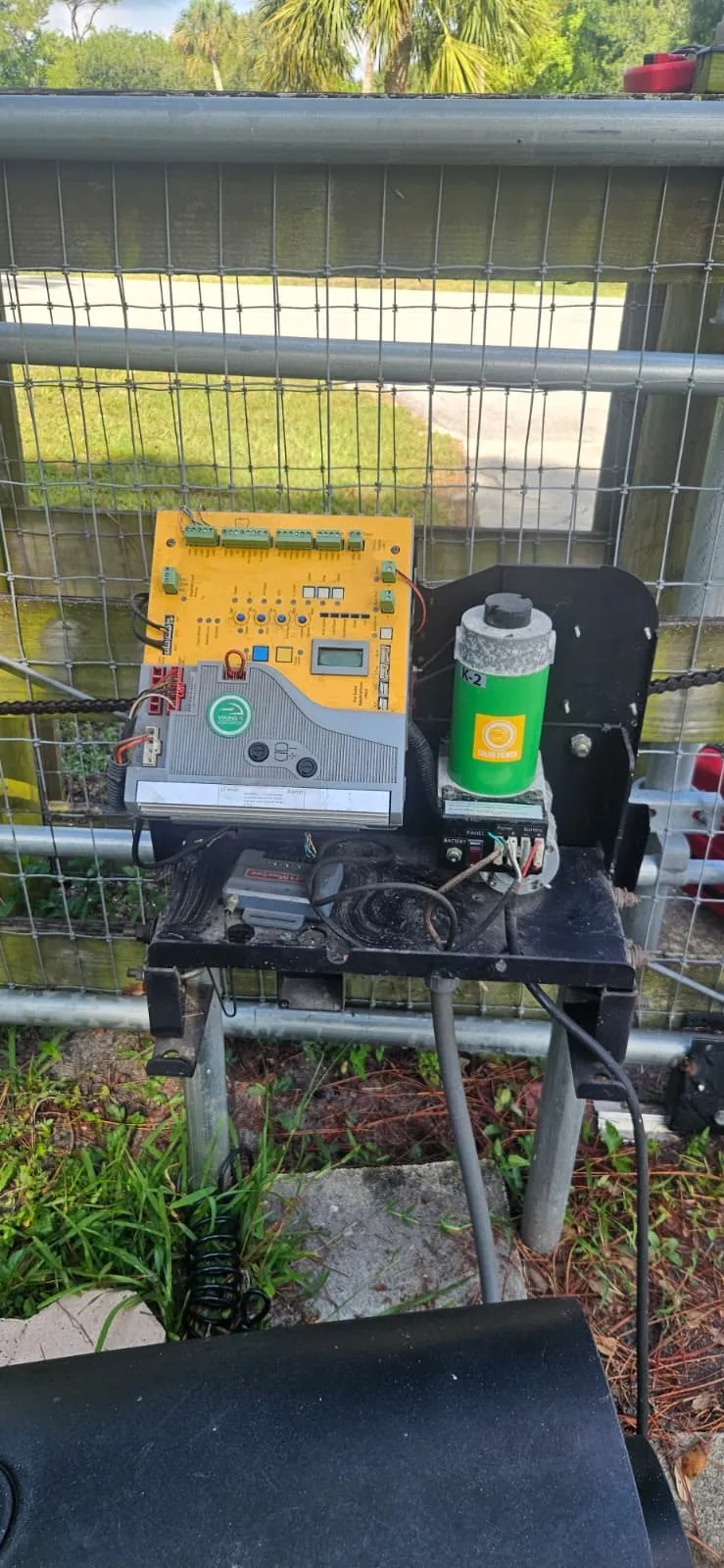

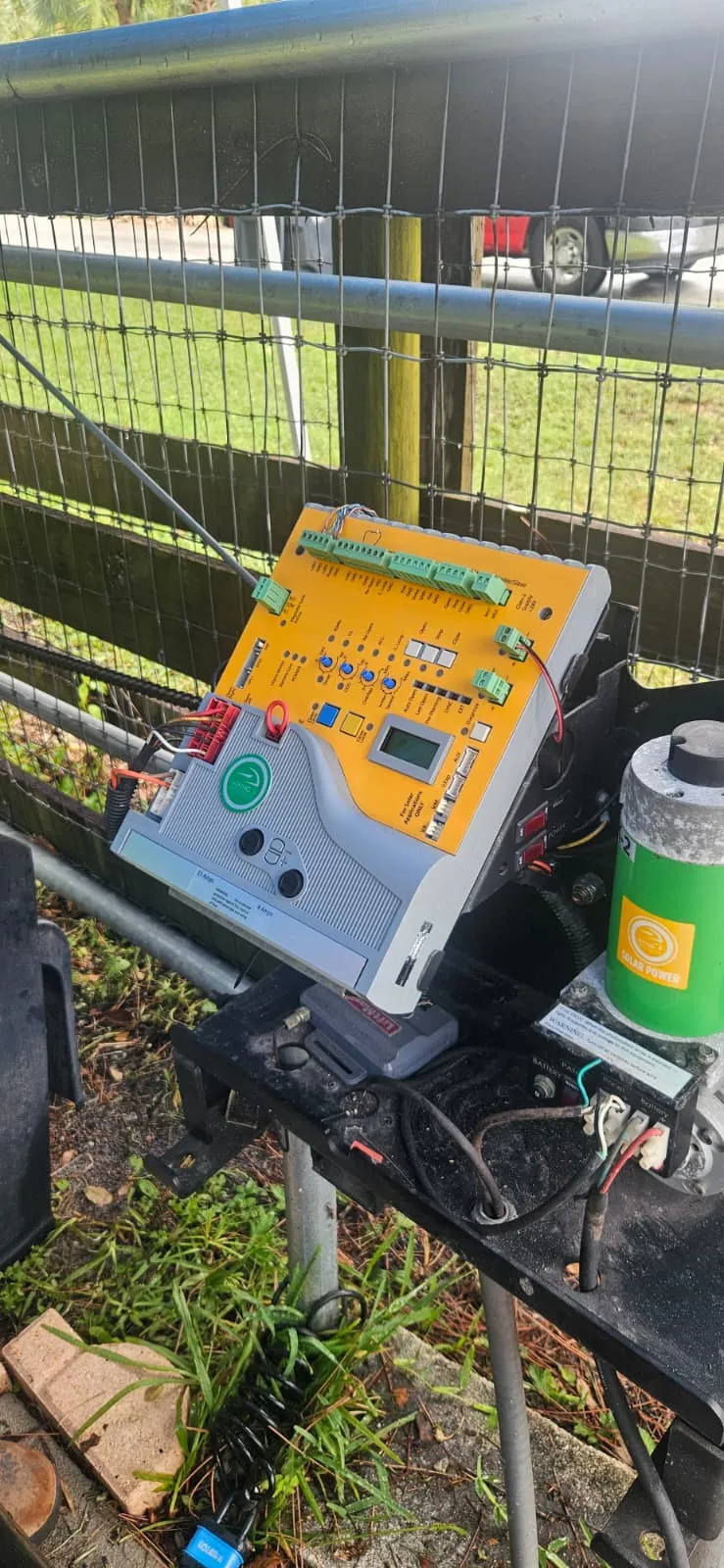

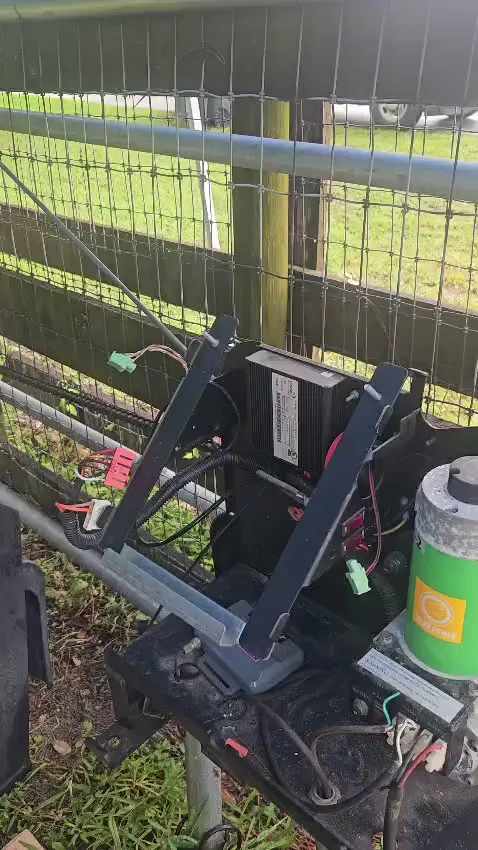

With a new sensor ruled out, the fault was the board itself: its position-sensing circuit was misreading a sensor that was actually fine. We installed a new Viking K2S control board, rewired it, and set fresh travel limits using her original sensor. The gate ran its full travel and held its new limits, and a final test came back clean.

A full service before we left

With the gate fixed, we gave it regular maintenance while we were there: cleaned and checked the track and rollers, set the chain tension, and went over the operator, so the repair holds and the gate runs smooth instead of grinding its way back into trouble.

What was on the invoice

Three visits. The first to diagnose it, the second to fit a new sensor, the third to replace the board.

The sensor came first on purpose. It costs a fraction of what a control board costs, and if the fault had been there, that would have been the whole repair. Only when the gate still behaved the same way with a new sensor on it did the board become the answer.

One charge, for the board. The other two visits were not billed, and neither was lubricating the whole system while I was in there.

The result

The gate that “only moved two feet” now opens and closes its full travel, on its original solar setup, with no new opener required. She’d spent a long time trying to get this solved. A technician from another company had looked at it earlier but couldn’t source the right parts or pin down the fault for certain. The right diagnosis got her gate working that day, and she was glad she didn’t replace the whole system.

The South Florida angle

Solar gate boards down here live a hard life: years of heat, sun, moisture, and the occasional surge all take a toll on the electronics. Age, corrosion, or a surge can make a board start misreading its sensors long before the gate “dies.” Catching it at the board level often saves the operator.
