Stainless Steel Chain in Royal Palm Yacht & Country Club: Rusted Chain Fighting the Motor

What the call sounded like

The chain was rusted, the gate was moving hard, and it was loud enough that they noticed every time it ran. The question they actually asked was the useful one: is there an easy way to keep a chain maintained.

What we found

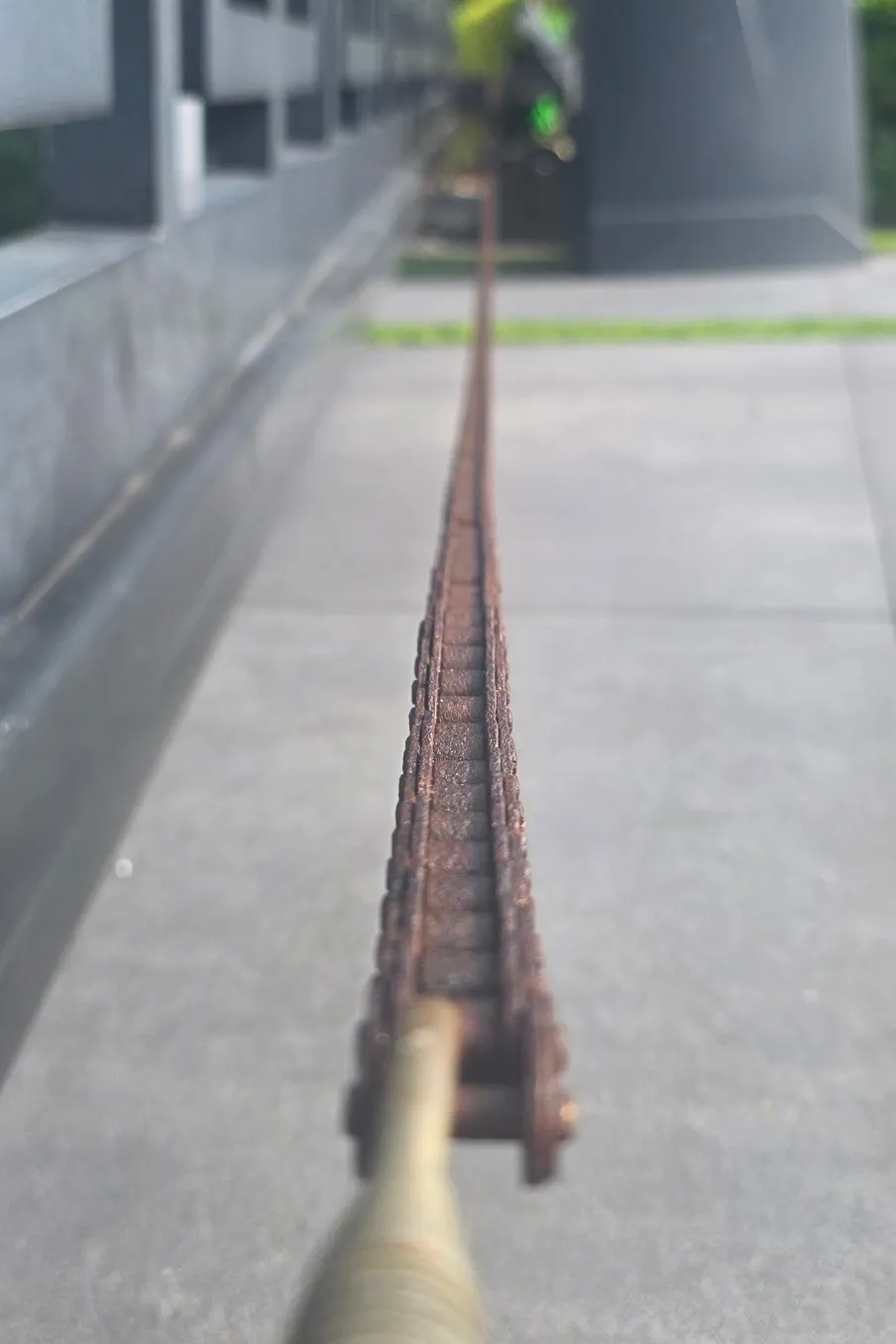

The chain was brown, dry, and stiff. Crispy is the word for it. There was no flex left in the links, and it had almost certainly gone in the same day as the Viking K2 a few years back.

The gate still opened. That is worth saying plainly, because the operator was doing the work a dry chain should have made impossible. Those Vikings are real Vikings. It pushed the gate anyway.

Why stainless was the answer to the question they asked

They wanted an easy way to maintain the chain. The honest answer is that the easiest maintenance is the kind you do not have to do.

Standard steel rusts. Coated steel rusts once the coating goes. Both need lubrication on a schedule that nobody keeps, and when they stop getting it, the chain dries out and the motor starts fighting it. Stainless does not rust. Years without a drop of lubrication and it still moves.

Everything else that came out of the visit

The chain was the job. It was not everything that got done.

Disconnecting the operator from the chain means the limits have to be reset, so that came with the work. While that was happening the owner mentioned they had been having a problem where the motor stopped at random. We traced it to a damaged wire inside the operator, cut back the bad section, and reconnected it properly.

Then the cantilever rollers, which were making their own noise. Those got greased. The top rollers got lubricated. The safety sensors were tested before we left.

The gate went from loud and laboring to quiet and smooth.

What was on the invoice

The chain. That is what the customer was charged for. The wire repair, the limits, the rollers, and the sensors were not billed separately.

The owner stood outside in the heat and watched the whole thing. His comment at the end was that it looked like it was not the first motor we had worked on.

What a real gate tech knows

Most operators ship with a steel chain in the box. That is fine most places. In Florida, and especially near the water, those chains do not last.

Some techs are happy to leave it. The chain seizes in a few years and that is another call. I would rather take a new job than come back for a problem I already knew was coming.

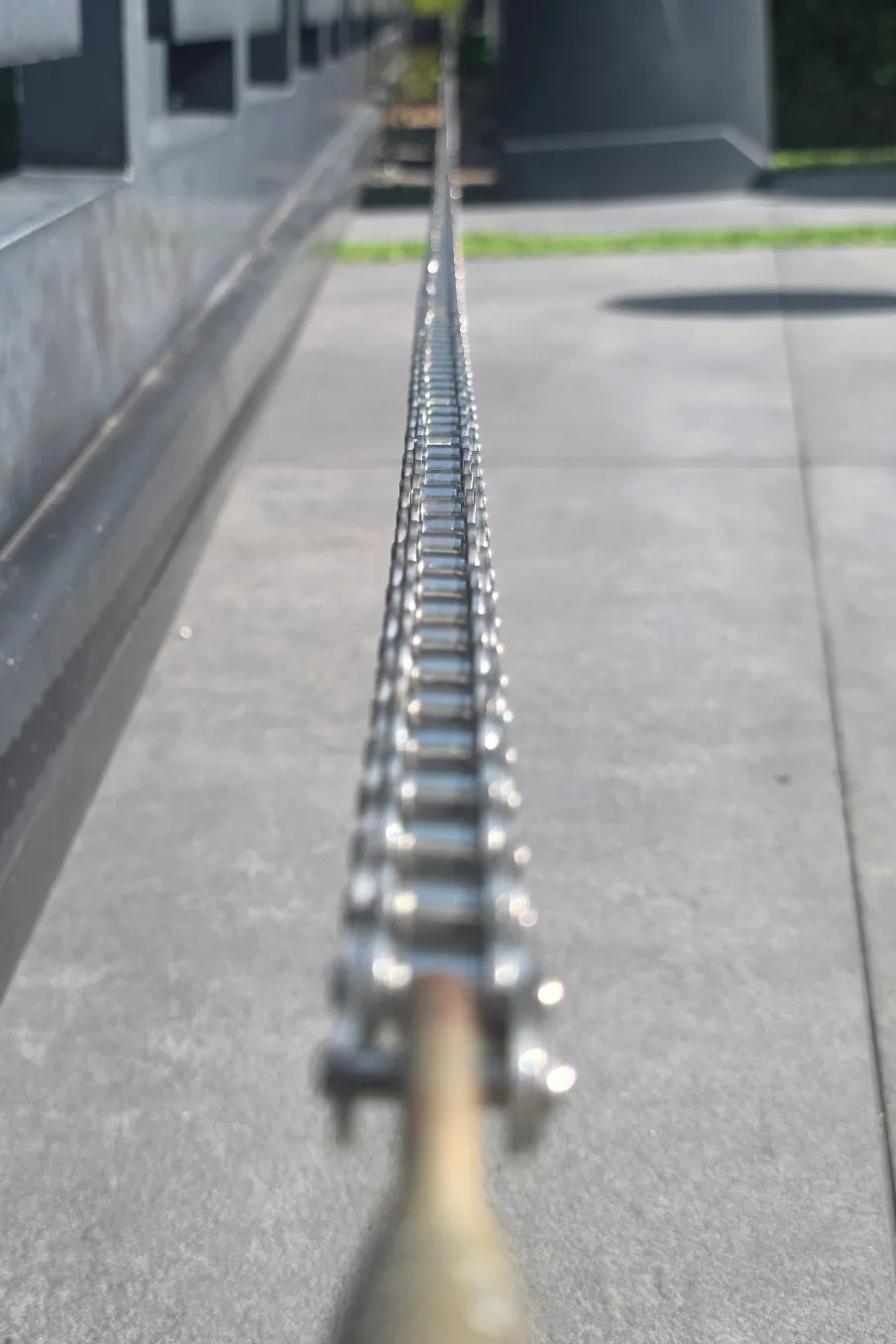

On a gate near the coast, and especially on a new operator, putting a stainless chain on it removes more future trouble than most people would guess. This gate will not seize because of its chain.

The South Florida angle

A chain lives outside in the heat, the rain, and the humidity for years, and nobody thinks about it until the gate starts making noise. By then it has usually been dry for a long time and the operator has been carrying the extra load the whole way. That is the real cost of a rusted chain: not the chain, the machine pulling it.
